Enigma5HYQ
by Ovarro (Primayer) · 🇬🇧 United Kingdom · Noise Loggers & Monitoring
SMART METERVERIFIEDRemote Leak Correlating Logger

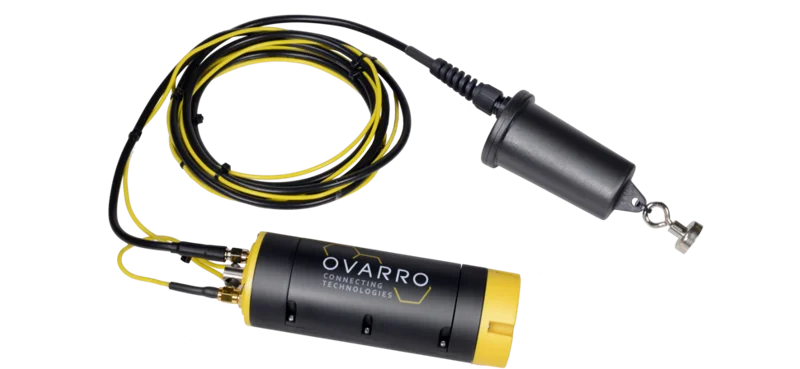

The Enigma5HYQ is a Remote Leak Correlating Logger by Ovarro. Lighter, more compact design. Advanced below-ground antenna. Patented time synchronization.
Technical specifications
| Meter / product type | Remote correlating leak noise logger (hydrophone, 5-series) |
| Application | Remote leak location over longer distances on large-diameter & plastic pipes |
| Detection method | Multi-point correlation of daily leak-noise via Atrium server; daily patented time-synchronisation; listen-to-noise confirmation |
| Sensor type | High-sensitivity hydrophone |
| Communication | Cellular IoT (Cat-M1, 2G fall-back) or 4G (Cat-1 Bis); Nano SIM (roaming); 2x SMA (GSM + radio) |
| Protection class (IP) | IP68 (submersible) |
| Power / battery | User-replaceable battery |
| Memory / logging | Large data memory; daily leak-noise recording |
| Outputs / software | Atrium server/app (database, Google Maps + Street View, colour-coded leak alarms, historical data, Android) |
| Accessories | SMA antennas (GSM + radio); Nano SIM |
| Mounting / installation | Magnet-mounted on metal fittings; underground chamber |
| Deployment type | Permanent fixed network (underground, remote) |
✓ Compiled from the official manufacturer source. View source →
