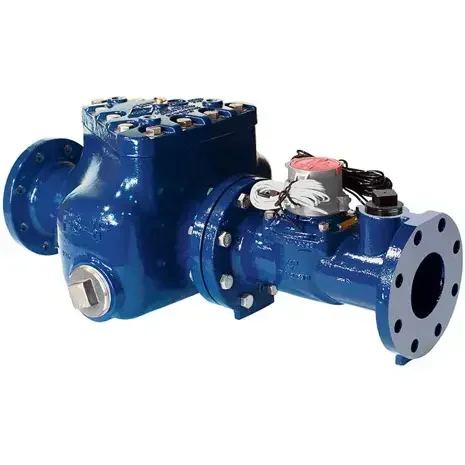

OMNI Fireline (F²) Water Meter
Advanced fire protection and commercial water meter designed for limited vault space applications. Features patented floating ball technology (FBT) for superior accuracy and extended service life. Ideal for both fire protection and commercial water lines with extended flow range and greater low-flow sensitivity. Single moving part design ensures virtually no wear throughout operational lifetime. Includes 180 days data logging, integral test port, and resettable totalizer. Electronic register with no mechanical gearing, fully magnetic pickup system, and configurable LCD display. Compatible with Sensus AMI/AMR systems with NFC capability for dead battery readings. AWWA C703 Class II certified with NSF/ANSI 61 approval. 10-year battery warranty. Can retrofit Sensus legacy W-Series compact and standard Fireline bypass meter assemblies.
Technical specifications
| Meter / product type | Mechanical - Fire Protection/Commercial |
| Application | Fire Protection, Commercial |
| Size range | 4", 6", 8", 10" |
| Flow range | 4": 1.5-1000 GPM, 6": 3-2000 GPM, 8": 4-3500 GPM, 10": 5-5500 GPM |
| Accuracy class | AWWA C703 Class II - NSF/ANSI 61 |
| Operating temperature | 33°F to 150°F (0.6°C to 65.6°C) |
| Communication | Sensus AMI/AMR compatible, NFC, Magnetic pickup |
| Battery life | 10 years |
| Standards & approvals | AWWA C703, NSF/ANSI 61 Annex F/G, UL listed, FM approved |
| Accuracy | AWWA C703 Class II - NSF/ANSI 61 |
| Alarms | Low battery, Continuous usage, High flow, Reverse flow |
| Application | Fire protection, commercial water metering, limited vault space |
| Batterylife | 10 years |
| Certifications | AWWA C703, NSF/ANSI 61, UL listed, FM approved |
| Communicationprotocols | Sensus AMI/AMR compatible, NFC, Magnetic pickup |
| Datalogging | 180 days |
| Design | Single moving part, limited vault space optimization |
| Features | Extended flow range, low-flow sensitivity, minimal wear, 10-year battery warranty, retrofit capability |
| Flowranges | 4": 1.5-1000 GPM, 6": 3-2000 GPM, 8": 4-3500 GPM, 10": 5-5500 GPM |
| Headloss | Reduced |
| Installation | Vertical and horizontal |
| Lowflowranges | 4": 0.75 GPM, 6": 1.5 GPM, 8": 2.5 GPM, 10": 3.5 GPM |
| Metertype | Mechanical - Fire Protection/Commercial |
| Sizerange | 4", 6", 8", 10" |
| Technology | Patented Floating Ball Technology (FBT) |
| Temperaturerange | 33°F to 150°F (0.6°C to 65.6°C) |
| Wearcharacteristics | Virtually no wear (single moving part) |
