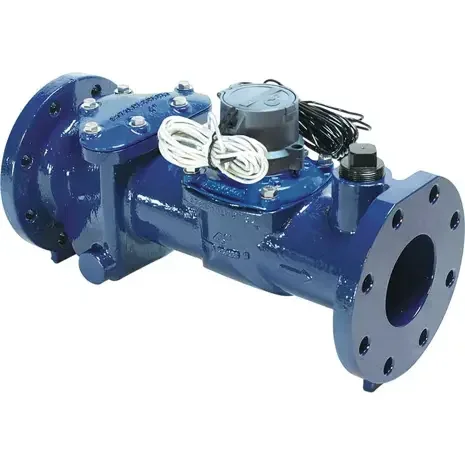

OMNI Compound (C²) Water Meters
Most technologically advanced large water meter featuring patented floating ball technology (FBT) for superior accuracy and extended service life. Designed for commercial applications including schools, hospitals, and retail centers. Features extended flow range with greater low-flow sensitivity and high-flow capture capability, with virtually no wear due to single moving part design. Includes 180 days data logging, integral test port, and resettable totalizer. Electronic register with no mechanical gearing, fully magnetic pickup system, and configurable LCD display. Compatible with Sensus AMI/AMR systems with NFC capability for dead battery readings. AWWA C701/C702 Class II certified with NSF/ANSI 61 approval. 10-year battery warranty. Available in standard and stainless steel (C²S) versions.
Technical specifications
| Meter / product type | Mechanical - Large Compound |
| Application | Commercial & Industrial (Schools, Hospitals, Retail Centers) |
| Size range | 1.5", 2", 3", 4", 6", 8", 10" (C²S: 1.5", 2", 3") |
| Accuracy class | AWWA C701/C702 Class II - NSF/ANSI 61 |
| Communication | Sensus AMI/AMR compatible, NFC, Magnetic pickup |
| Battery life | 10 years |
| Standards & approvals | AWWA C701, AWWA C702, NSF/ANSI 61 Annex F/G, UL listed, FM approved |
| Accuracy | AWWA C701/C702 Class II - NSF/ANSI 61 |
| Alarms | Low battery, Continuous usage, High flow, Reverse flow |
| Application | Commercial, schools, hospitals, retail centers |
| Batterylife | 10 years |
| Certifications | AWWA C701/C702, NSF/ANSI 61, UL listed, FM approved |
| Communicationprotocols | Sensus AMI/AMR compatible, NFC, Magnetic pickup |
| Datalogging | 180 days |
| Design | Single moving part, interchangeable chambers (C2/T2) |
| Features | Extended flow range, low-flow sensitivity, high-flow capture, minimal wear, 10-year battery warranty |
| Flowrange | Extended low to high flow range |
| Headloss | Reduced |
| Highflowcapture | Extended high-flow rate capture |
| Installation | Vertical and horizontal |
| Lowflowsensitivity | Greater low-flow sensitivity |
| Metertype | Mechanical - Large Compound |
| Sizerange | 1.5" to 10" (standard), 1.5" to 3" (stainless) |
| Technology | Patented Floating Ball Technology (FBT) |
| Wearcharacteristics | Virtually no wear (single moving part) |
